Our new range of stainless steel wire

Stainless steel wire is a popular and beautiful choice for residential and commercial settings which provides a modern and attractive look. Combine it with timber and glass for the perfect finish.

We supply a full range of products to create a stunning stainless steel wire balustrade or barrier.


Common installation examples

Swageless wire

Swaged wire

Hand swaging


Wire ROPE options

7x7 stainless steel wire rope

  • 3.2mm thick wire
  • Stainless steel 316
  • Available in 100m or 305m rolls

1x19 stainless steel wire rope

  • 3.2mm thick wire
  • Stainless steel 316
  • Available in 100m or 305m rolls

Washed & polished wire rope with superior packaging!

Extra ultra sonic washing production step reduces tea staining development and gives a brighter, cleaner finish.



Post options

50x10mm intermediate post

  • With welded base plate (2x CSK holes)
  • Pre-drilled (972mm high) or no hole (1000mm high) posts available

SQ50 range 50x50mm post

  • Various lengths available with or without base plates plus a huge range of fittings
  • Contact us for our full range

MOD50 range Ø50.8mm post

  • Various lengths available with or without base plates plus a huge range of fittings
  • Contact us for our full range

50x10mm post accessories

70x60mm base plate

  • 2x CSK holes
  • Can be welded to 50x10mm tube

70x60mm top plate

  • Innovative design - grub screws to clamp top plate to 50x10mm post
  • No welding required - easy post height adjustment
  • 2x CSK holes

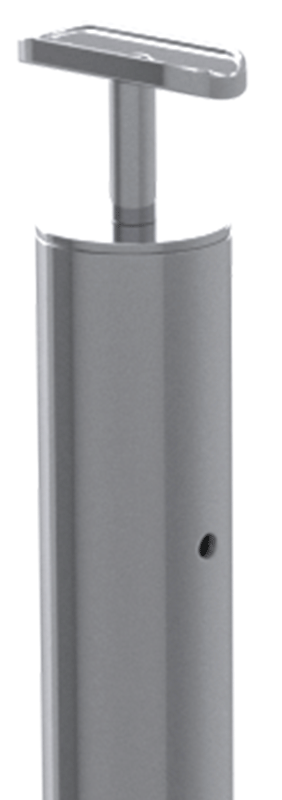

Flat rail converter

  • Suits 50x10mm post
  • Affix tube with M6 blind rivet nut

Round rail converter

  • Suits 50x10mm post
  • To be used with Ø50.8mm top rail

Drilled & tapped 50.8mm round base plated posts
LEFT and right posts available

Kit includes

  • 50.8mm round post with 11x drilled and tapped M6 holes (3mm wall thickness)
  • Pre-welded base plated
  • Domical cover
  • 2x top plates suitable for flat or 50.8mm round handrail

BENEFITS & FEATURES

  • 982mm high post with pre-welded base plate
  • SS316 in mirror polish #800 finish
  • 11x drilled and tapped M6 holes allow M6 threaded fixings to be screwed into post
  • Industry first solution!

Ø50.8mm drilled & tapped M6 base plated post

Left or right threaded
982mm high

  • SS316 - Polish finish
  • 11x runs of M6 threaded & tapped holes
  • 81mm hole centres
  • Includes 1x flat saddle & 1x 50.8mm curved saddle
  • 3mm wall

Ø50.8MM DRILLED & TAPPED M6 BASE PLATED 90° POST

982MM HIGH

  • SS316 - Polish finish
  • 11x runs of M6 threaded & tapped holes
  • 81mm hole centres
  • Includes 1x flat saddle & 1x 50.8mm curved saddle
  • 3mm wall

Ø50.8MM DRILLED BASE PLATED mid POST

982MM HIGH

  • SS316 - Polish finish
  • 11x runs of drilled holes at 180°
  • 81mm hole centres
  • Includes 1x flat saddle & 1x 50.8mm curved saddle
  • 1.5mm wall

Technical specs

*Sample posts pictured



IDEAL START OR END POST TO USE WITH EYE SCREWS OR THREADED TERMINALS

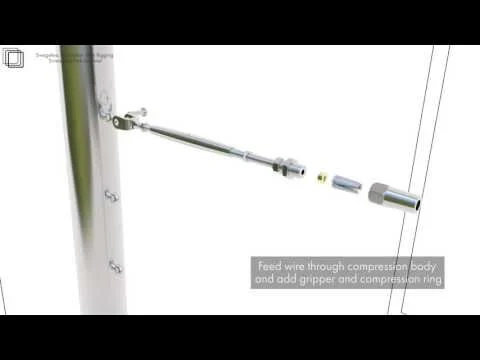

Swageless fittings

Easy and forgiving swageless installation with self gripping terminals on both ends of wire

1. Swageless fork terminal

2. Stainless steel wire rope

3. Swageless rigging screw



Cut to size wire system

Simply provide your opening sizes and we will cut wire to size & swage with everything you need for your job supplied - ready for install!


Popular styles

Wire option 1.png

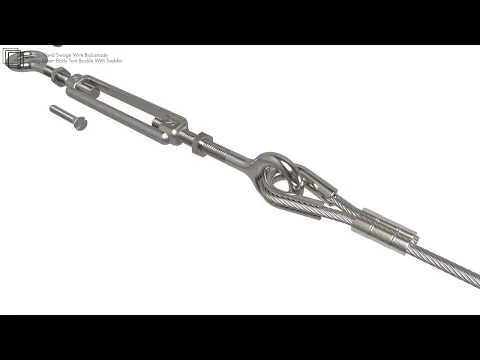

Swage terminals

Suitable for timber and metal application


Rigging screw, fork terminal & eye screws

Suitable for timber and metal application

Wire option 5.png

Rigging screw, fork terminal & 5mm saddles

Suitable for timber and metal application




Fittings and accessories

We offer a wide range of fittings and accessories making up to 5 install configurations possible!


POSSIBLE Install configurations
