‘Tri-action’ system consists of rare earth magnets, springs & hydraulic shock absorbers resulting in a premium self closing hinge


  Click to view  technical specs

Click to view technical specs

Front

  Click to view  technical specs

Click to view technical specs

Back

120 series glass to glass hinge set

  • Glass to glass hinges - pair of 2
  • Stainless steel 2205
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-120GG


 Front

Front

 Back

Back

110 series Glass to glass hinge set

  • Glass to glass hinges - pair of 2
  • Stainless steel 316
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

Order code: PSC-GG


  Click to view  technical specs

Click to view technical specs

Front

  Click to view  technical specs

Click to view technical specs

120 series glass to wall hinge set

  • Glass to wall hinges - pair of 2
  • Stainless steel 2205
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-120W


 Front

Front

 Back

Back

110 series GLASS TO wall HINGE SET

  • Glass to wall hinges - pair of 2
  • Stainless steel 316
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-W


  Click to view  technical specs

Click to view technical specs

Front

120 series glass to square post hinge set

  • Glass to square post hinges - pair of 2
  • Stainless steel 2205
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-120SP


 Front

Front

 Back

Back

110 series GLASS TO SQUARE POST HINGE SET

  • Glass to square post hinges - pair of 2
  • Stainless steel 316
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-SP


 Front

Front

 Back

Back

110 series GLASS TO OFFSET WALL HINGE SET

  • Glass to offset wall hinges - pair of 2
  • Stainless steel 316
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-oW


120 series glass to ROUND post hinge set

  • Glass to round post hinges - pair of 2
  • Stainless steel 2205
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kg per pair
  • Satin or polish finish

ORDER CODE: PSC-120RP


 Front

Front

 Back

Back

110 series GLASS TO ROUND POST HINGE SET

  • Glass to round post hinges - pair of 2
  • Stainless steel 316
  • Suits 10mm and 12mm glass gates
  • Adjustable closing speed & soft close action
  • Max gate weight: 50kG per pair
  • Satin or polish finish

ORDER CODE: PSC-RP


POLARIS 120 series TECHNICAL SPECIFICATIONS

Glass to glass hinge specification

Glass to wall hinge specification

Glass to square post hinge specification

Glass to round post hinge specification

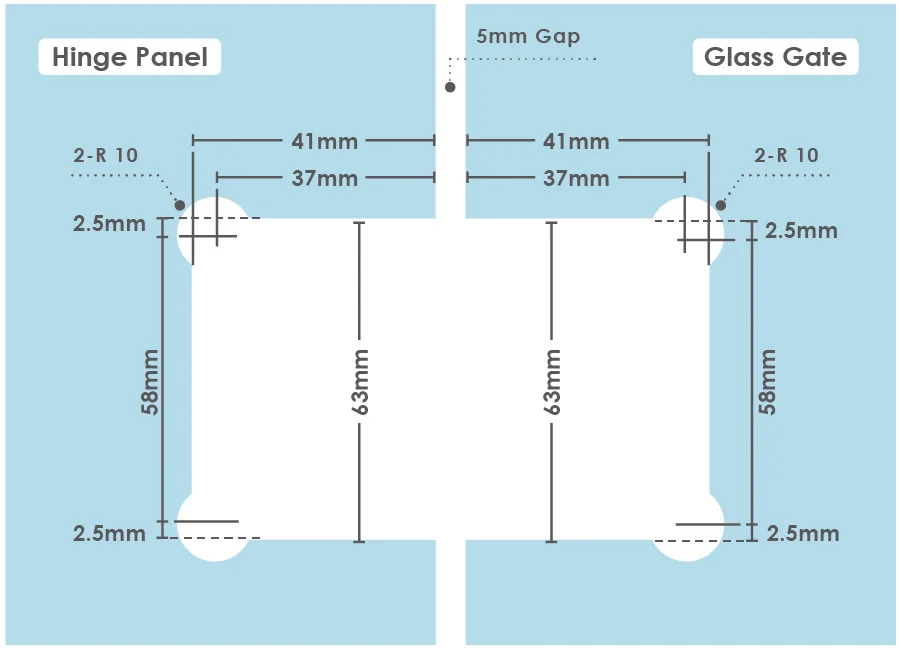

Glass to glass hinge cut out

  Hinge cut out at top and bottom of glass gate

Hinge cut out at top and bottom of glass gate

Glass to wall or post hinge cut out

 Hinge cut out at top and bottom of glass gate

Hinge cut out at top and bottom of glass gate


Polaris 110 SERIES soft close hinge installation guide

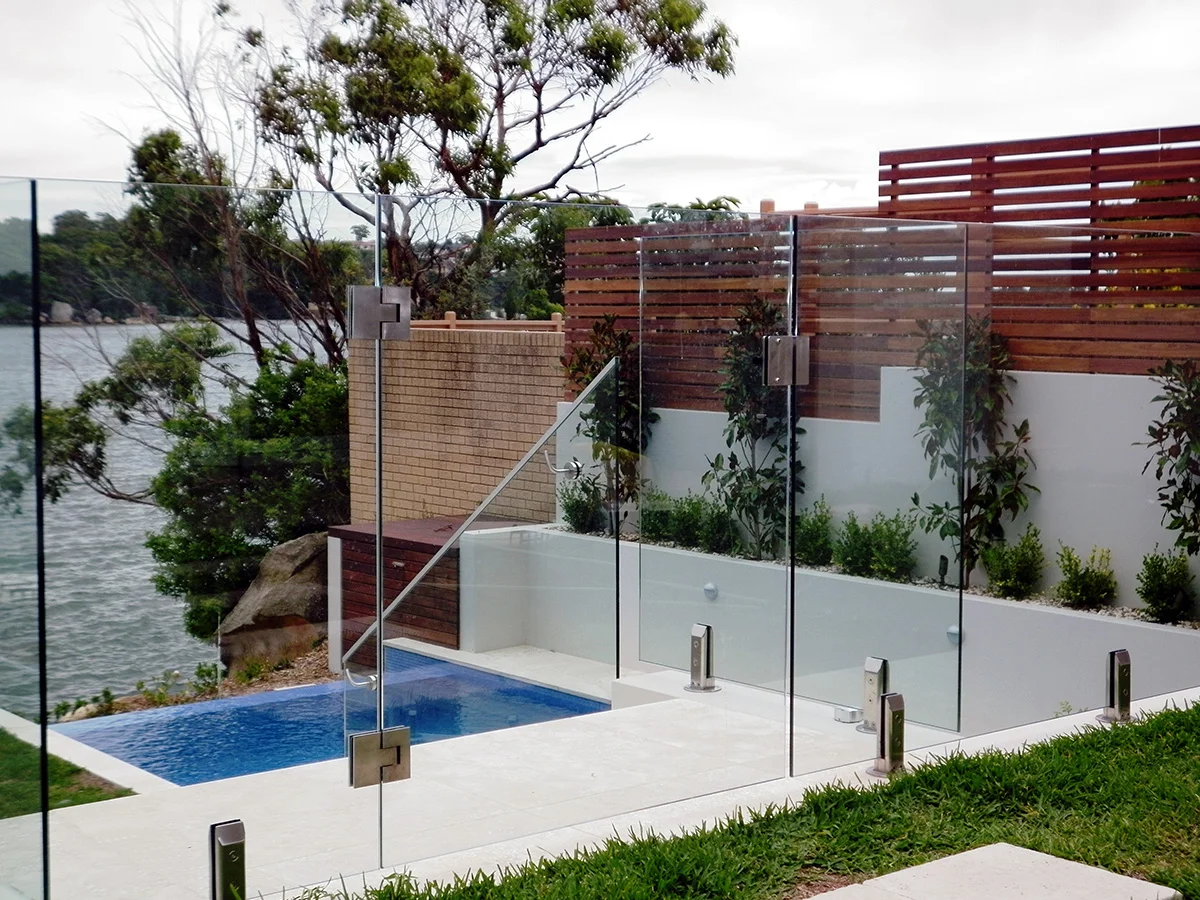

A simple step by step installation guide for installing a frameless glass gate for pool fencing using the Polaris Soft Close Hinge
